NEW BUNGALOW SALES BUBBLE V1 REINFORCED SERIES 6 METERS
£9,000.00
DIMENSIONS
External height: 252 cm
Internal height: 220 cm
Length: 609 cm
Width: 242 cm
FRAME
Material: Galvanized and lacquered steel
Colour: Anthracite grey RAL 7016
Thickness: 2 mm
Base height: 160 mm
Roof height: 200 mm
Handling: 4 lifting points on the roof for lifting hooks and fork openings in the base for handling with a forklift
WALLS AND ROOF
Material: Sandwich panels
Insulation: Rigid polyurethane foam
Wall thickness: 50 mm
Roof thickness: 40 mm
Roof covering: Galvanized steel sheet with corrugated waves
Wall colour: Light grey RAL 9002
FLOOR
Structure: Water-resistant chipboard panels
Thickness: 18 mm
Finish: PVC imitation parquet with black skirting boards
JOINERY
Material: White lacquered aluminium RAL 9010
Door(s): 1 fully glazed entry door, dimensions 104 x 220 cm (90 cm clear width), clear laminated safety glazing, 4+4 mm thickness
Window(s): 2 fixed glazed windows, dimensions 204 x 220 cm, clear laminated safety glazing, 4+4 mm thickness
ELECTRICITY
Lighting: 2 LED fluorescent lights
Sockets: 2 power outlets
Heating: 1 convector 1500 W
Panel: 1 electrical panel including an RCD and circuit breakers
Connection: 1 external connection box
Possible options
Free colour choices for the frame: white RAL 9010, light grey RAL 9002, or anthracite grey RAL 7016
Other optional colours for panels, frame, or joinery
Floor insulation with 50 mm thick glass wool on galvanized steel protection sheets
Ceiling height of 2.40 m, door height remains 2.20 m
Base on skids (2 IPE 16 cm beams)
Integrated WC area with WC + washbasin + door + partitions (option for hot water at the sink available)
Integrated shower area (with hot water) + door + partitions
4 rainwater downpipes
Joinery in anthracite grey lacquered aluminium RAL 7016
Reversible air conditioner 2300 W UNICO R10
Window air conditioner cold-only 12000 BTU
Mobile air conditioner SHINY 12 Reversible R290 3.5 KW + window kit
LED panels instead of fluorescent lights
Additional semi-glazed door, solid door, or full-glass door
Additional window, sliding window, snack window, or window with service hatch and intercom
Roller shutters in aluminium or PVC, specific colours possible
Wood-concrete floor 16 mm thick instead of chipboard (essential if the bungalow is not elevated by a few cm with blocks or shims, as well as for damp environments) with a load-bearing capacity of 400 kg/m²
Phenolic wood floor 18 mm thick instead of chipboard, load-bearing capacity: 500 kg/m²
Heavy-duty PVC flooring instead of imitation parquet PVC or tiled flooring
Smooth panels, food-grade panels, rock wool panels, or fire-resistant panels
Additional sockets or RJ45 outlets
Possibilities to add a kitchenette
Sink with cabinet 80×60 cm, 1 cold basin
Sink with cabinet 80×60 cm, 1 basin with hot water
Sink with cabinet + hot water + 2 cooking plates + fridge

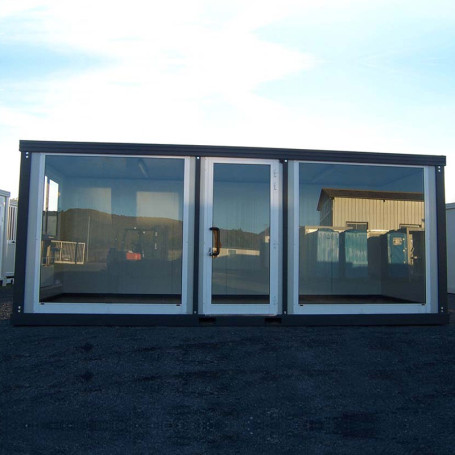

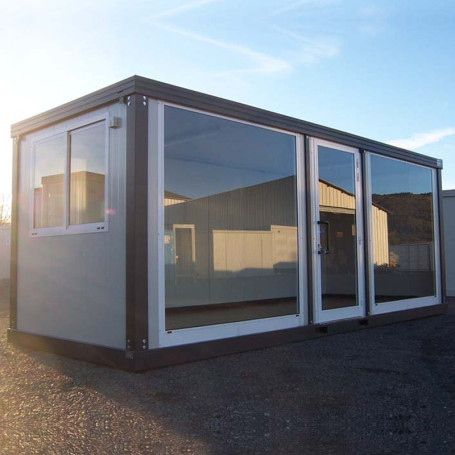

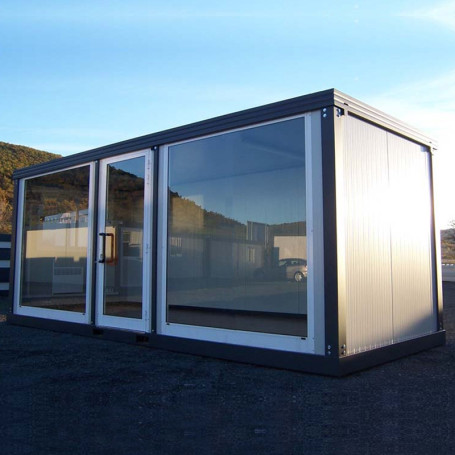

Our 6-meter Sales Bubble Bungalow V1 is a module with an entirely glazed façade, designed to meet the needs of sales offices for various activities: real estate developers, vehicle sales, marble works, home-based professionals, independent workers, and more.
New 6-meter Sales Bubble Bungalow V1
The Sales Bubble Bungalow provides you with a comfortable and aesthetically pleasing office or point of sale at an unbeatable price and delivery time compared to traditional construction solutions. We have standardized 4 sales bubbles with different sizes and levels of options.
Our 6-meter Sales Bubble V1 is offered as standard in our “Reinforced” series.
The bungalows in the “Reinforced” series feature a reinforced structure, as well as improved thermal and acoustic insulation (thick insulation and double glazing). They provide better comfort compared to the standard series, making them more suitable for office use.
If you need this same module with the strongest structure available in our range, or the most efficient thermal and acoustic insulation, you can request a quote for this bungalow in our “Isoplus” series.
Our “Sales Bubble V1” bungalow requires a manufacturing and delivery time of 8 weeks. For a faster delivery with a similar configuration, you can opt for our 6-meter Sales Bubble V2 (available only in 6 meters).
