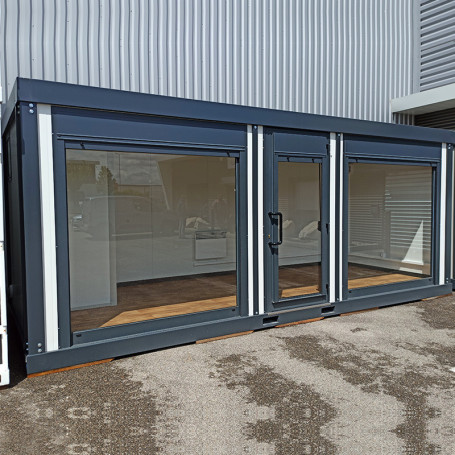

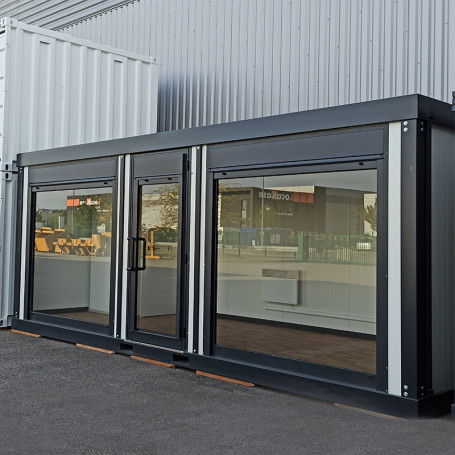

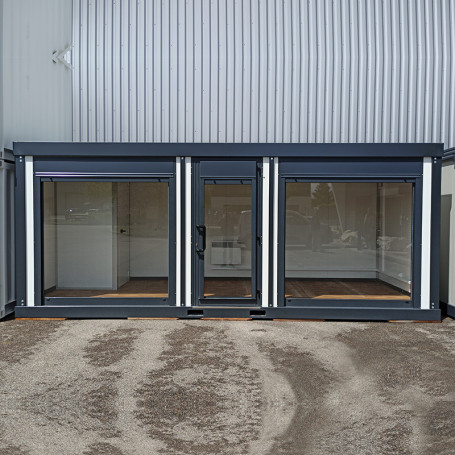

NEW BUNGALOW SALES BUBBLE V2 REINFORCED SERIES 6 METERS

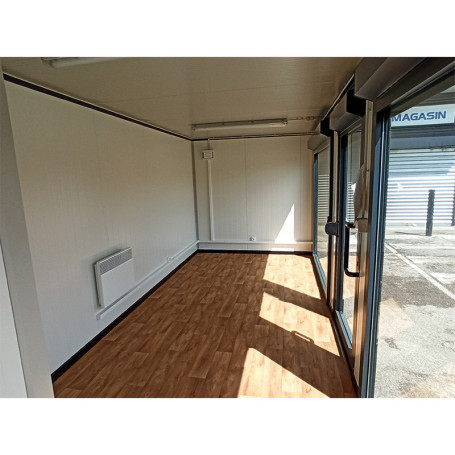

DIMENSIONS External height: 252 cm Internal height: 220 cm Length: 609 cm Width: 242 cm FRAME Material: Galvanized and lacquered steel Colour: Anthracite grey RAL 7016 Thickness: 2 mm Base height: 160 mm Roof height: 200 mm Handling: 4 lifting points on the roof for lifting hooks and fork openings in the base for handling with a forklift WALLS AND ROOF Material: Sandwich panels Insulation: Rigid polyurethane foam Wall thickness: 50 mm Roof thickness: 40 mm Roof covering: Galvanized steel sheet with corrugated waves Wall colour: Light grey RAL 9002 FLOOR Structure: Water-resistant chipboard panels Thickness: 18 mm Finish: PVC imitation parquet with black skirting boards JOINERY Material: White lacquered aluminium RAL 9010 Door(s): 1 fully glazed entry door, dimensions 104 x 220 cm (90 cm clear width), clear laminated safety glazing, 4+4 mm thickness Window(s): 2 fixed glazed windows, dimensions 204 x 220 cm, clear laminated safety glazing, 4+4 mm thickness ELECTRICITY Lighting: 2 LED fluorescent lights Sockets: 2 power outlets Heating: 1 convector 1500 W Panel: 1 electrical panel including an RCD and circuit breakers Connection: 1 external connection box Possible options Free colour choices for the frame: white RAL 9010, light grey RAL 9002, or anthracite grey RAL 7016 Other optional colours for panels, frame, or joinery Floor insulation with 50 mm thick glass wool on galvanized steel protection sheets Ceiling height of 2.40 m, door height remains 2.20 m Base on skids (2 IPE 16 cm beams) Integrated WC area with WC + washbasin + door + partitions (option for hot water at the sink available) Integrated shower area (with hot water) + door + partitions 4 rainwater downpipes Joinery in anthracite grey lacquered aluminium RAL 7016 Reversible air conditioner 2300 W UNICO R10 Window air conditioner cold-only 12000 BTU Mobile air conditioner SHINY 12 Reversible R290 3.5 KW + window kit LED panels instead of fluorescent lights Additional semi-glazed door, solid door, or full-glass door Additional window, sliding window, snack window, or window with service hatch and intercom Roller shutters in aluminium or PVC, specific colours possible Wood-concrete floor 16 mm thick instead of chipboard (essential if the bungalow is not elevated by a few cm with blocks or shims, as well as for damp environments) with a load-bearing capacity of 400 kg/m² Phenolic wood floor 18 mm thick instead of chipboard, load-bearing capacity: 500 kg/m² Heavy-duty PVC flooring instead of imitation parquet PVC or tiled flooring Smooth panels, food-grade panels, rock wool panels, or fire-resistant panels Additional sockets or RJ45 outlets Possibilities to add a kitchenette Sink with cabinet 80x60 cm, 1 cold basin Sink with cabinet 80x60 cm, 1 basin with hot water Sink with cabinet + hot water + 2 cooking plates + fridge

DIMENSIONS External height: 247 cm Internal height: 202 cm Width: 242 cm Possible lengths: 209, 309, 409, 509, or 609 cm FRAME Material: Galvanized and lacquered steel Colour: Light grey RAL 9002 Thickness: 1.5 mm Base height: 160 mm, thickness 2 mm Roof height: 150 mm Handling: 4 lifting hook points on the roof, base with fork access for handling with a forklift equipped with 250 cm forks JOINERY Material: Lacquered aluminium, white RAL 9010 Door(s): 1 insulated solid door, dimensions 134 x 220 cm (120 cm passage width) Ventilation: 2 PVC ventilation grilles, dimensions 50 x 23 cm, one on the door, the other on the rear side WALLS AND ROOF Material: Sandwich panels Insulation: Rigid polyurethane foam Wall thickness: 40 mm Roof thickness: 30 mm Roof covering: Galvanized steel with Greek-style waves Wall colour: Light grey RAL 9002 FLOOR Structure: Galvanized steel Thickness: 1.2 mm Equipment: Recovery tray Floor: Galvanized steel grid (mesh 35x76 mm = not suitable for pallet truck use / possibility of tighter mesh as an option for pallet truck compatibility) Height: 120 mm Load capacity: 500 kg/m² ELECTRICITY Lighting: 1 switch + 1 LED ceiling light or 1 LED neon (depending on size) Heating: 1 convector 1000 W Socket: 1 power outlet Electrical panel: 1 panel including differential switch and circuit breakers Connection: 1 external connection box Optional features

• 90m³/h extractor fan with switch
• Tightly meshed grating suitable for pallet truck use
• Ceiling height of 2.40 m, door height remains 2.20 m
