NEW BUNGALOW GUARD HOUSE 3

Original price was: £4,888.00.Current price is: £4,260.00.

Technical Specifications

DIMENSIONS
External height: 241 cm
Internal height: 220 cm
Width: 242 cm
Length: 309 cm

FRAME
Material: Galvanized and lacquered steel
Colour: Anthracite grey RAL 7016
Thickness: 1.5 mm
Base height: 95 mm
Roof height: 150 mm
Handling: 4 lifting hooks on the roof

JOINERY
Material: Lacquered anthracite grey RAL 7016 aluminium
Door(s): 1 semi-glazed door 104 x 220 cm (90 cm passage), barbed, single clear glazing
Window(s): 3 sliding windows 104 x 110 cm, barbed, single clear glazing

WALLS AND ROOF
Material: Sandwich panels
Insulation: Rigid polyurethane foam
Wall thickness: 40 mm
Roof thickness: 30 mm
Roof covering: Galvanized steel sheet with Greek waves
Wall colour: Light grey RAL 9002

FLOORING
Structure: Waterproof particle board
Thickness: 18 mm
Finish: PVC

ELECTRICAL
Lighting: 1 switch + 1 LED fluorescent light
Sockets: 2 power outlets

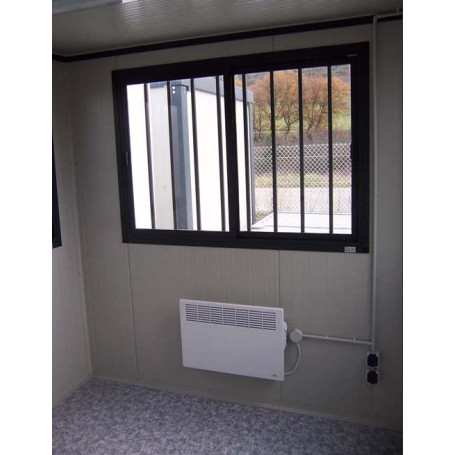

Heating: 1 convector 1500 W
Panel: 1 electrical panel with residual current device and circuit breakers
Connection: 1 external connection box

Possible Options
Double glazing
Free colour choices for the frame: White RAL 9010, Light grey RAL 9002, or Anthracite grey RAL 7016
Other optional colours for panels, frame, or joinery
Floor insulation with 50mm thickness of glass wool on galvanized steel protective plates
Ceiling height of 2.40 m, door remains at 2.20 m
Reinforced base with fork passage (90 cm center-to-center) for handling with a forklift equipped with 240 cm forks
Base on skids (2 IPE beams 16 cm)
Integrated WC area with WC + washbasin + door + partitions (hot water at the sink available as an option)
Integrated shower area (with hot water) + door + partitions
4 rainwater downpipes
Reversible air conditioner 2300 W UNICO R10
Window air conditioner, cooling only 12000 BTU
Mobile air conditioner SHINY 12 Reversible R290 3.5 KW + window kit
LED tiles instead of fluorescent light
Additional semi-glazed door, solid door, or fully glazed door
Additional window, French window, snack window, or window with counter and hygienic screen
Roller shutters in aluminium or PVC, specific colours available
Wood-cement floor 16 mm thick instead of particle board, load capacity: 400 kg/m²
Phenolic wood floor 18 mm thick instead of wood-cement, load capacity: 500 kg/m²
High traffic PVC flooring instead of standard, parquet-effect PVC, or tiled flooring
Smooth panels, food-grade panels, rock wool panels, or fireproof panels
Removal of bars for doors and windows = free
Additional sockets or RJ45 outlets
Options to add a kitchenette
Sink on cabinet 80x60cm 1 cold bowl
Sink on cabinet 80x60cm 1 bowl with hot water
Sink on cabinet + hot water + 2 cooking plates + fridge

Add to compare
Add to wishlist
Category:
Description

Guardian’s Lodge Bungalow: A 180° View Security Post

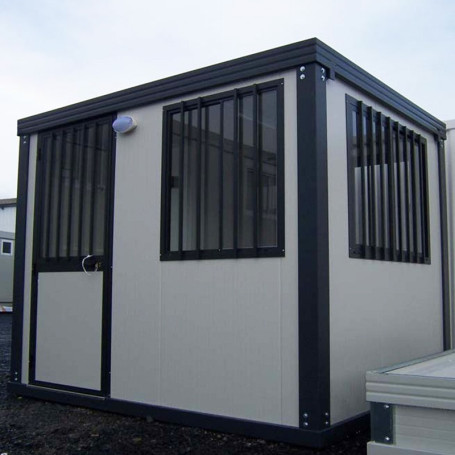

The Guardian’s Lodge Bungalow is a modular unit featuring three fully glazed facades with anthracite grey joinery, providing a 180° view. It is designed to serve as a security cabin or guard post, offering an efficient and comfortable solution for your security needs.

New Guardian’s Lodge Bungalow

Our Guardian’s Lodge Bungalow is a fully equipped module tailored to meet the requirements of a surveillance post. This module is ideal for organizations looking for a high-quality security cabin within an unbeatable delivery time and at a highly competitive price, especially when compared to traditional construction solutions. It can be installed permanently or relocated frequently. We also offer optional additions, such as windows or a service window with a hygienic barrier and document pass, as well as forklift entry points for easy handling with a forklift equipped with 250 cm forks.

The Guardian’s Lodge Bungalow comes with anthracite grey RAL 7016 joinery: a semi-glazed barbed door and three sliding barbed windows. The barbed wiring can be removed. The unit is also equipped with a switch, LED neon light, heating, and two electrical outlets.

The delivery time for this module is a maximum of 8 weeks from the order date, as it is custom-built to order.

This module can be customized and configured to suit your specific needs.

The Guardian’s Lodge Bungalow is part of our “Standard” series, which represents our entry-level finish: standard structure and standard insulation.

If required, this module can be produced in our “Reinforced” or “Isoplus” series, offering superior thermal and acoustic insulation, along with a reinforced structure.

Guardian’s Lodge Bungalow Description

The Guardian’s Lodge Bungalow features a galvanized and lacquered steel frame in anthracite grey RAL 7016.

The roof profile is made of galvanized steel, lacquered in anthracite grey RAL 7016, with a thickness of 1.5 mm, a height of 150 mm, and four lifting points for crane transport.

The base profiles are also made from galvanized steel, lacquered in anthracite grey RAL 7016, with a thickness of 1.5 mm and a height of 95 mm.

The roof is made from sandwich panels with rigid polyurethane foam, 30 mm thick, Euroclass Cs3d0. The roofing cover is galvanized corrugated steel, with rainwater drainage along the sides.

The walls are made from sandwich panels with rigid polyurethane foam, 40 mm thick, with a light grey RAL 9002 color, Euroclass Cs3d0.

The floor is constructed from water-resistant agglomerated wood, 18 mm thick, with a PVC coating.

Joinery in anthracite grey RAL 7016 lacquered aluminum.

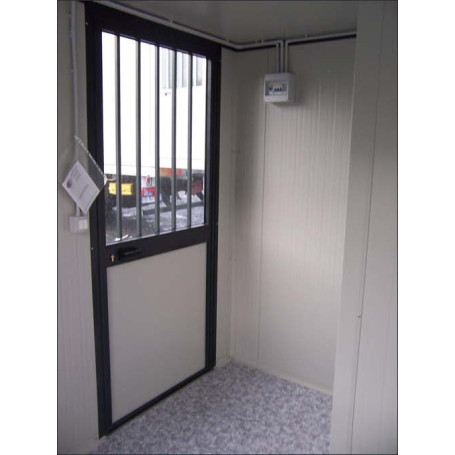

The Guardian’s Lodge Bungalow includes a semi-glazed door measuring 104 x 220 cm (with a passage width of 90 cm), fitted with clear single glazing and bars. It also has three sliding windows measuring 104 x 110 cm, also barbed and fitted with clear single glazing.

Electrical Installation (220V)

The Guardian’s Lodge Bungalow includes:

  • A switch
  • An LED neon light
  • Two power outlets
  • A 1500-watt convector heater
  • An electrical panel with RCD and circuit breakers (up to 6 kW)
  • An external connection box.
