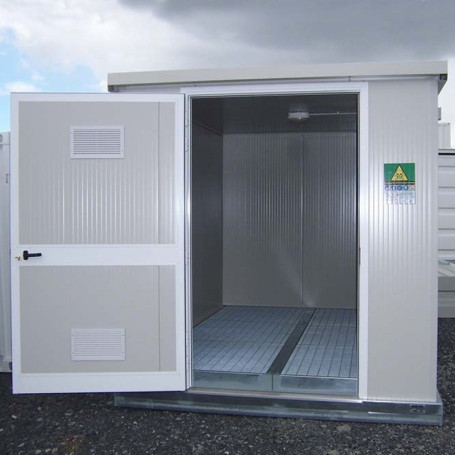

New Storage Bungalow for Phytosanitary Products

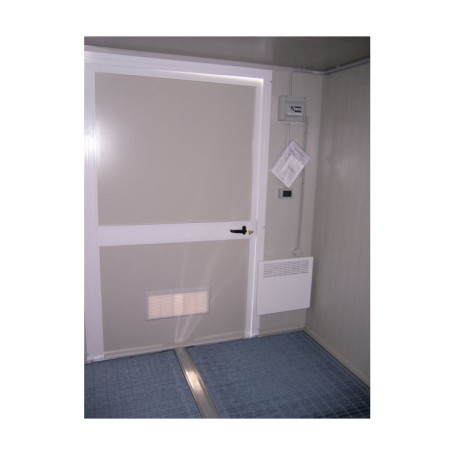

DIMENSIONS External height: 252 cm Internal height: 220 cm Width: 242 cm Length: 309 cm FRAME Material: Galvanized and lacquered steel Colour: Anthracite grey RAL 7016 Thickness: 2 mm Skirting: Height 160 mm Roof: Height 200 mm Handling: 4 lifting hook points on the roof CARPENTRY Material: Lacquered anthracite grey RAL 7016 aluminium Door(s): 1 half-glazed door, dimensions 104 x 220 cm (90 cm clearance), clear double glazing Window(s): 1 sliding window, dimensions 104 x 110 cm, clear double glazing Equipment: 1 stainless steel shelf, dimensions 104 x 30 cm under the window WALLS AND ROOF Material: Sandwich panels Insulation: Rigid polyurethane foam Wall thickness: 50 mm Roof thickness: 40 mm Roof covering: Galvanized steel with Greek waves Wall colour: Light grey RAL 9002 FLOOR Structure: Wood-cement panels Thickness: 16 mm Finish: PVC LIGHTING Lighting: 2 switches + 1 LED neon light + 1 LED ceiling light (7.5 W) on the façade Sockets: 2 power outlets Heating: 1 1500 W convector Electrical panel: 1 panel including residual current circuit breaker and fuses Connection: 1 external connection box Optional Features Canopy dimensions: 3.09 x 1.20 m (to be installed by you once the module is in place) Free colour choices for the frame: White RAL 9010, light grey RAL 9002, or anthracite grey RAL 7016 Other colour options available for panels, frame, or carpentry Underfloor insulation with 50 mm thick glass wool on galvanized steel protection sheets Ceiling height: 2.40 m, the door remains at 2.20 m Skirting with fork slots (90 cm pitch) for handling with a forklift equipped with 240 cm forks Skirting on skids (2 IPE beams, 16 cm) Integrated WC area with WC, washbasin, door, and partitions (hot water at the washbasin available as an option) Integrated shower area (with hot water), door, and partitions 4 rainwater downpipes Air Conditioning Options Reversible air conditioner 2300 W UNICO R10 Window air conditioner (cooling only) 12000 BTU Mobile air conditioner SHINY 12 Reversible R290 3.5 KW + window kit LED panels instead of neon light Additional half-glazed door, solid door, or full-glazed door Additional window, sliding door, snack window, or window with service hatch and hygiene screen Roller shutters in aluminium or PVC, specific colours available Phenolic wood floor, 18 mm thick, instead of wood-cement, load-bearing capacity: 500 kg/m² High-traffic PVC floor finish instead of standard, PVC imitation wood, or tile floor Smooth panels, food-grade panels, rock wool panels, or fireproof panels Removal of bars from doors and windows = free Additional power outlets or RJ45 outlets Possibilities for adding a kitchenette Sink on cabinet 80x60 cm, 1 cold basin Sink on cabinet 80x60 cm, 1 basin with hot water Sink on cabinet + hot water + 2 cooking plates + fridge
